MAATS BM36-48

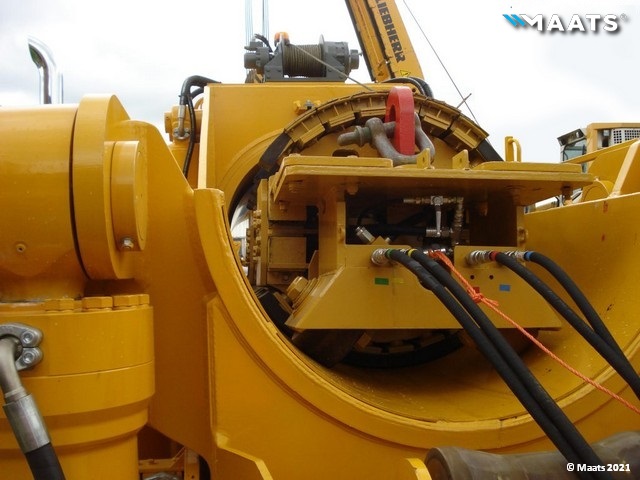

MAATS BM36-48 PIPE BENDING MACHINE for 36" to 48"
| Manufacturer | MAATS |
| Model | BM36-48 Pipe Bending Machine |
| Working range | 36" to 48" |
| Operating weight | 64.500 kgs |
| Engine make & model | LIEBHERR D934 L A6 |
| Engine output | 180 kW |
| Emission standards | EU Stage IIIA and EPA Tier3 |
| Standard configuration BM36-48 | LIEBHERR Integrated |
| amongst other items | Hydraulic PTO to drive a mandrel |
| Tracked chassis | |
| Track pads 914 mm | |
| Hydraulic driven winch | |
| Cable 16 mm x 25 meters | |
| Optional Equipment | Compressor |
| amongst other items | Cold start device |
| Non-standard track pads & chain length | |
| Cable 16 mm x 50 meters | |
| Bending sets & Dies | |
| Transport dimensions (L x W x H) | 9.810 mm x 3.932 mm x 3.485 mm |
| Product brochure | Specifications Maats BM36-48 |
| Contact us for a detailed quotation and availability | |
